Fuse Box Replacement Cost in Scotland: 2026 Pricing Guide

A fuse box replacement (or, in modern terminology, a consumer unit upgrade) is one of the most common pieces of electrical work on Scottish homes. Older properties often need the upgrade to bring the installation in line with current Wiring Regulations or as remedial work after an unsatisfactory EICR. Cost is the first question most homeowners ask. The honest answer in 2026 is that a typical Scottish residential fuse box replacement costs £450 to £950 fully installed, with most 3 bedroom homes falling between £550 and £800. This guide breaks down exactly what drives the cost, what is included, and what to expect from a NICEIC certified installation.

Headline fuse box replacement pricing in Scotland

Indicative fully installed costs for fuse box replacement in Aberdeenshire and across Scotland in 2026:

• Small flat or 1 bedroom property (6 to 8 way unit): £450 to £600.
• Standard 2 to 3 bedroom home (8 to 10 way unit): £550 to £800.
• Larger 4 bedroom home (10 to 14 way unit): £650 to £850.
• 5 bedroom or larger home with extensive circuits (14 to 18 way unit): £750 to £950.
• Property with electric heating, EV charger, outbuildings (18+ way unit): £850 to £1,200.
• Three phase commercial consumer unit: from £900 by inspection.

The price covers the unit itself, all required protective devices, the labour to remove the old unit and fit the new one, electrical testing, and the Electrical Installation Certificate. Faithful Spark provides fixed price quotes; there are no surprise extras at completion.

What drives the variation in fuse box replacement cost?

Two quotes for the same property can differ by £100 to £300 or more. The variation comes from real differences in the work involved. Understanding what drives the cost helps you compare quotes meaningfully.

Number of circuits

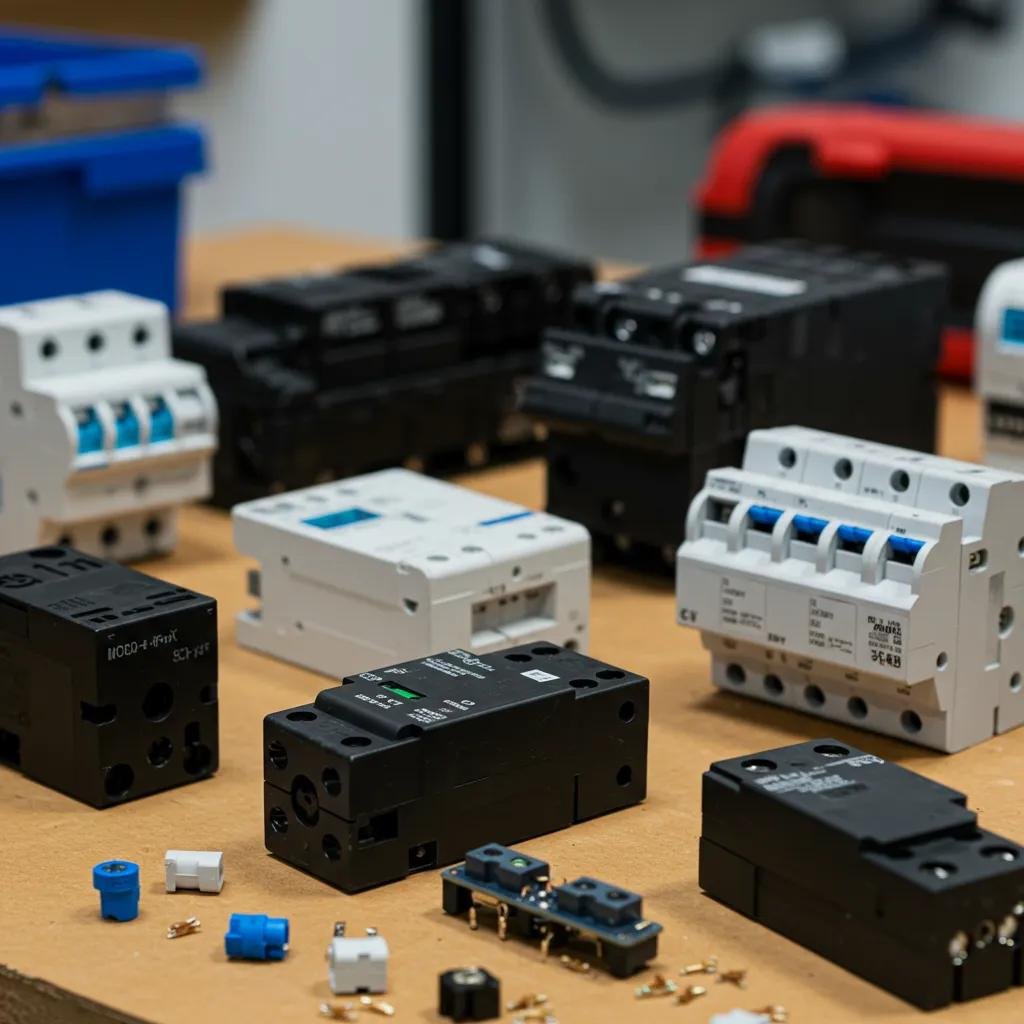

A small flat may have 4 to 6 circuits. A larger detached home with electric heating, EV charging, and outbuildings may have 14 to 20 circuits. Each circuit needs its own protective device (an MCB, RCD, or RCBO) in the new unit. More circuits mean more protective devices, more labour to reconnect, and more testing time at the end.

Type of consumer unit

Three configurations affect cost:

• Split load consumer unit: Two banks of circuits, each protected by one RCD. Budget option, meets current standards. Adds £0 to the base price.
• Dual RCD consumer unit: Two equal banks each protected by an RCD. Similar cost to split load.
• Full RCBO consumer unit: Each circuit protected by its own RCBO. More expensive (£80 to £150 above split load) but better selectivity. A fault on one circuit only affects that circuit.

Earthing arrangement

If the property has a TT earthing arrangement (independent earth electrode rather than a supply provided earth), the new consumer unit needs a 30mA RCD as the main switch instead of a non RCD main switch. This adds approximately £50 to £100 to the unit cost. The Aberdeen and Aberdeenshire grid generally provides PME (Protective Multiple Earthing) which does not require this; some rural properties have TT.

Surge Protection Device (SPD)

Optional add on to protect sensitive electronics from voltage surges. Adds £80 to £150. Recommended for properties with significant computer, smart home, or AV equipment investment.

Arc Fault Detection Devices (AFDDs)

Required by the 18th edition Wiring Regulations on certain circuits in certain property types. AFDDs add £80 to £150 per protected circuit. Faithful Spark advises whether AFDDs are required at the survey stage.

Existing supply condition

If the existing supply has obvious problems (damaged tails, an old style cutout that needs replacement, or a meter that needs to be moved), additional work coordinated with SSEN may add to the project. SSEN attendance adds time but typically minimal cost as the supply work itself is at SSEN’s expense.

Relocation of the unit

Moving the consumer unit to a more accessible location (out from under the stairs, away from a built in cupboard) adds £200 to £600 depending on the cable run length. This is rarely strictly necessary but is sometimes worth doing where the existing unit is in a difficult location.

What is included in the fuse box replacement price?

A Faithful Spark fixed price quote for a residential consumer unit replacement includes:

• Pre installation survey at the property to confirm the work required.
• The new consumer unit (a known brand such as Hager, Wylex, Schneider, or BG with appropriate certification).
• All MCBs, RCDs, or RCBOs required to populate the unit.
• Removal of the existing consumer unit.
• Installation of the new unit in the same location.
• Reconnection of every existing circuit to the appropriate protective device.
• Replacement of the main switch tails where required.
• Full electrical testing of every circuit (insulation resistance, polarity, earth fault loop impedance, RCD trip times).
• Issue of the Electrical Installation Certificate.
• Notification to Building Standards through the NICEIC competent person scheme.

What is not included

Some items fall outside the standard consumer unit replacement quote and may be priced separately:

• Remedial work on existing circuits: If the EICR or pre installation survey identifies issues with specific circuits, remedial work is quoted separately.
• Earthing or bonding upgrades: Where the property’s main earth or supplementary bonding does not meet current standards, additional work may be required.
• Meter movement: If the supply meter needs to be moved to fit the new unit, SSEN attendance is required.
• Decorative finishing: Touch up of paint or plaster around the new unit if the new unit’s footprint differs from the old one.
• Adding new circuits: Adding circuits for a new EV charger, electric shower, or other major load is a separate project that may be timed to coincide with the consumer unit replacement.

Faithful Spark identifies any additional work needed at the survey stage so the full project cost is clear before any work begins.

How does the cost compare with the alternative?

Some homeowners are reluctant to replace a working consumer unit, even one that has been flagged on an EICR. The alternative cost picture is worth understanding:

• Letting a property without a satisfactory EICR: First Tier Tribunal action, Rent Relief Order (£3,000 to £4,200 in lost rent for a 3 month period on a typical Aberdeenshire 3 bedroom rental), criminal fines, and potential loss of landlord registration.
• Insurance claim from an electrical fault: Where an older consumer unit contributes to a fault, claims may be declined under the policy’s compliance condition.
• Property sale delays: Older fuse boards regularly cause buyer concerns during conveyancing. Replacing the unit before listing typically removes a significant area of negotiation friction.
• Tenant injury liability: A tenant injured by an electrical fault that an updated consumer unit would have prevented exposes the landlord to significant personal liability.

The £450 to £950 cost of replacement is small compared with each of these exposures.

Should I be wary of very low fuse box replacement quotes?

Yes. Quotes significantly below the typical Scottish range often indicate one of three issues:

• Lower quality consumer unit: Some unbranded or budget consumer units come from manufacturers without the same fire safety certification as the established brands.
• Non NICEIC installation: An installer without NICEIC or SELECT registration cannot self certify the work to Building Standards. The homeowner is then responsible for paying the council to inspect and certify, which adds £200 to £400 to the project.
• Incomplete scope: The quote excludes items that should be included (testing, certification, tails replacement) and adds them at completion.

The Aberdeenshire fuse box replacement market has clear price norms. A quote 30% below the typical range warrants questions about NICEIC registration, the consumer unit brand, and the scope of testing and certification included.

Does the cost differ across Aberdeenshire?

Faithful Spark applies the same pricing across the Aberdeen, Peterhead, Ellon, Fraserburgh, and surrounding Aberdeenshire service area. There is no postcode based premium for any town or village within the standard service area. For more remote rural locations, a small travel surcharge may apply, which is confirmed at the booking stage.

Frequently asked questions

Is the price inclusive of VAT?

Faithful Spark quotes for residential customers are inclusive of VAT. Commercial quotes show VAT separately for the customer’s accounting records.

Do I pay before or after the work?

Standard residential consumer unit replacement is paid on completion. For larger projects or commercial work, a deposit may be agreed at booking with the balance due on certificate issue.

Can I get the consumer unit replacement done in stages to spread the cost?

The replacement is typically a single visit because the supply is isolated for the duration. It is not practical to do half the unit one day and half another. Faithful Spark can sometimes phase additional work (such as adding new circuits) over multiple visits if the consumer unit replacement is part of a larger project.

Will my insurance be affected by the new unit?

A new consumer unit with a current Electrical Installation Certificate is generally a positive factor in any insurance discussion. Notify your insurer of the work as a property update; most insurers do not adjust the premium but record the upgrade as a positive change to the property.

How long does the new consumer unit last?

A modern consumer unit installed by an NICEIC contractor has a service life of 25 years or more. The MCBs and RCDs themselves are tested mechanical components with very long life expectancy. The installation is registered with the manufacturer at completion to support any warranty claim.

Book a free fuse box replacement survey

Faithful Spark provides NICEIC certified consumer unit upgrades and fuse box replacements across Aberdeen, Peterhead, Ellon, Fraserburgh, and all of Aberdeenshire. Free survey, fixed price quotes, and same day completion for most residential installations. See our pillar guide on consumer unit upgrades in Aberdeen and our companion guide on EICR costs in Aberdeenshire.
