You have just had a survey done on the house you are buying. Everything looks fine until you get to the electrical section. The surveyor has flagged the consumer unit. Maybe they have called it a fuse board, maybe they have said the electrics are old, maybe they have used phrases like “does not meet current standards” or “further investigation recommended”. Whatever the exact wording, you are now sitting there wondering what it actually means and how much it is going to cost you.
This is one of the most common calls we get at Faithful Spark Electricians. Someone is buying a house in Aberdeen or Aberdeenshire, a surveyor or EICR has flagged the consumer unit, and they want to know whether they genuinely need to spend money on it or whether the surveyor has been overly cautious. The honest answer is: it depends on what type of consumer unit is in the property and what the specific concern is. This guide will walk you through everything you need to know.
What Does It Actually Mean When a Survey Flags the Consumer Unit?
First, something important to understand: a surveyor is not an electrician. When they flag the consumer unit in a home survey, they are doing a visual observation, not a technical electrical assessment. They are looking at it, noting what they can see, and flagging anything that does not look modern or that they cannot confirm is safe. That is their job and they are right to do it, but it does not tell you what the actual electrical condition of the property is.
If a surveyor flags the consumer unit as “old” or “non-standard” or says it “should be inspected by a qualified electrician,” what they are really saying is: this is outside my area of expertise, get someone qualified to look at it. That someone is a registered electrician, not another surveyor.
The proper way to assess the electrical condition of a property is through an Electrical Installation Condition Report (EICR). An EICR is a formal inspection and test of the fixed electrical installation, carried out by a qualified electrician. It results in one of two outcomes: Satisfactory or Unsatisfactory. If it is Unsatisfactory, the report will list observations using one of four classification codes.
The EICR Classification Codes Explained

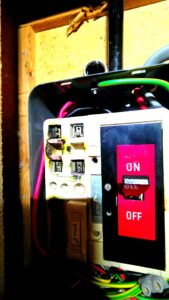

C1 — Danger Present. This means there is an immediate risk of injury or death. A C1 means the installation has a fault serious enough that it poses a danger right now, without anything else going wrong. Examples might include bare live conductors, no earthing, or severe overheating. A C1 on an EICR means the work must be done urgently. In many conveyancing situations, mortgage lenders and solicitors will not allow completion to proceed until C1 issues are remedied.
C2 — Potentially Dangerous. This means the installation has a defect that could become dangerous if circumstances deteriorate or if the installation is used as normal over time. It is not immediately dangerous today, but it is a real risk. C2 observations also result in an Unsatisfactory EICR. Most mortgage lenders will require C2 issues to be resolved, either before completion or shortly after, and this is increasingly standard practice among lenders who accept EICRs as part of their lending criteria.
C3 — Improvement Recommended. This is the only code that does not result in an Unsatisfactory EICR. A C3 means the installation does not meet current standards, but it is not dangerous. It is still working, still safe in practical terms, but an upgrade would bring it up to date. A C3 on its own does not force you to do anything, though it is still worth taking seriously.
FI — Further Investigation Required. This means the electrician has identified something they cannot fully assess without more investigation. It does not mean it is dangerous, but it cannot be confirmed as safe either until further work is done.
The key point is this: only a qualified electrician carrying out an EICR can actually tell you what needs doing and how urgently. A surveyor flagging the consumer unit is a starting point, not a conclusion.
The Four Types of Consumer Unit You Might Find in a Scottish Property
Scotland has a huge range of housing stock, from Victorian tenements in Aberdeen’s West End to 1970s bungalows in Peterhead to newer builds out in Aberdeenshire. The consumer unit in any given property will reflect when the electrical installation was put in or last upgraded. Here is what you might find.
1. A Rewireable Fuse Board (Pre-1960s)
These are the oldest type of consumer unit still found in Scottish homes. They use ceramic fuse carriers with fuse wire. When a circuit overloads, the wire melts and breaks the circuit. The problem is that fuse wire can be replaced with the wrong rating, or people bridge the fuse carrier with copper wire or foil to stop it blowing, which completely defeats the protection. These boards almost never have any RCD protection whatsoever.
A rewireable fuse board is the highest risk type. If you encounter one during a house purchase, the EICR will almost certainly return an Unsatisfactory result, and the consumer unit replacement will be necessary. Beyond the consumer unit itself, a property with an original fuse board often has wiring that is equally old, and a full rewire may be more appropriate than just swapping the board.
2. An MCB-Only Board (No RCD Protection)
These were common from the 1970s through to the early 2000s. MCBs (miniature circuit breakers) replaced fuse wire and were a significant safety improvement. An MCB trips automatically when there is an overload or short circuit, and it can be reset without needing new fuse wire. However, an MCB-only board has no RCD (residual current device) protection.
RCDs are what protect people from electric shock. They detect tiny current imbalances caused when electricity flows through a person to earth, and they disconnect the circuit in milliseconds. An MCB will protect the wiring from fire but it will not protect you from electrocution. Under modern standards, virtually every circuit in a domestic property requires 30mA RCD protection. A board with no RCDs at all is a significant gap in safety.
On an EICR, the absence of RCD protection on circuits that require it is typically coded C2, meaning it is potentially dangerous. This will result in an Unsatisfactory EICR and is something mortgage lenders are increasingly picking up on.
3. A Split-Load or Dual RCD Board
These became common from around the late 1990s and through the 2000s. They use two RCDs, each protecting half the circuits in the board. The idea was to provide RCD protection across all circuits while ensuring that if one RCD tripped, you would still have power to the other half of the house.
The problem with split-load boards is that they group circuits together under a shared RCD. If one circuit on that side develops a fault, the RCD trips and takes out every other circuit sharing it. So a faulty washing machine can knock out your kitchen sockets, your oven, and your bathroom lighting all at once. This is called nuisance tripping and it is a real problem in practice.
Split-load boards can still be found working without faults and may pass an EICR if the installation is otherwise in good order. They are not the worst thing to find in a property, but they are not current best practice either, and they will not match the standard of a modern installation.

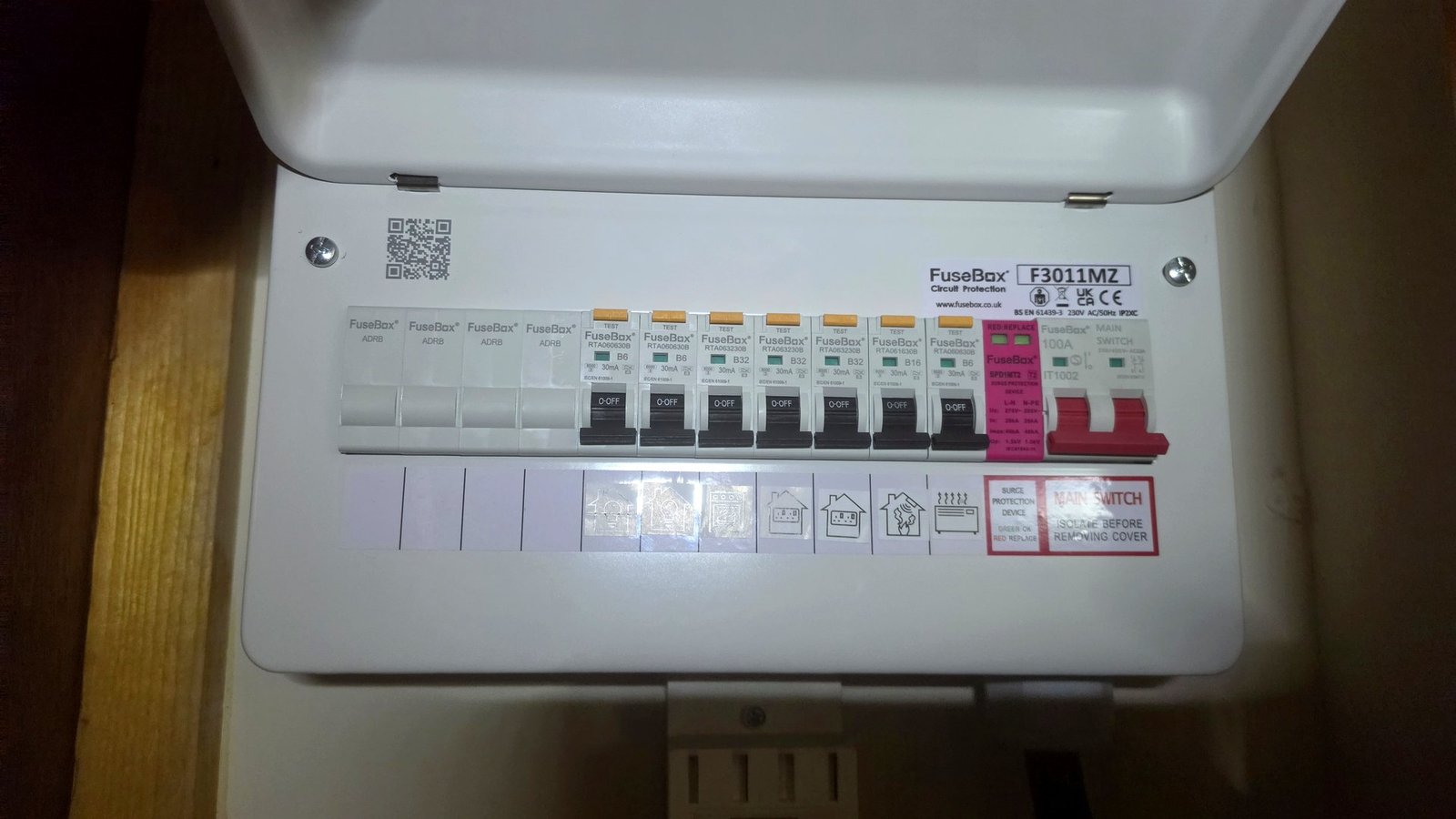

4. A Full RCBO Board with SPD (Current Best Practice)
This is what we install today, and it is the current best practice under BS 7671 Amendment 4. An RCBO is a combined device that provides both overcurrent protection (like an MCB) and residual current protection (like an RCD) in a single unit, and it does this on a per-circuit basis. Every circuit gets its own RCBO, so if one circuit develops a fault and trips, only that circuit goes down. The rest of the house keeps power. No nuisance tripping, no half-house blackouts.
A full RCBO board also comes with a surge protection device (SPD). An SPD protects the installation from voltage spikes caused by lightning or switching events on the grid. Under BS 7671 Amendment 4, SPD provision is a mandatory consideration on every new installation. In practice, almost every new consumer unit replacement in Aberdeen we carry out now includes an SPD as standard.
If you are buying a property and the existing board is a full RCBO board with SPD and the EICR comes back Satisfactory, you are in a good position. This is the type of board a new consumer unit installation should result in.
When Does Scottish Law Effectively Require You to Replace It?
This is the question most buyers actually want answered. Here is the honest breakdown.
C1 on the EICR
A C1 coding means danger is present right now. If an EICR on the property returns a C1 related to the consumer unit, you are looking at work that must be done urgently. In a conveyancing context, most solicitors will not allow completion to proceed with an outstanding C1. It is effectively a block on the sale until it is resolved. This is not unique to Scotland, but it applies just as firmly here as anywhere else.
C2 on the EICR
A C2 is potentially dangerous. The EICR returns Unsatisfactory. Mortgage lenders will often require C2 issues to be resolved as a condition of the mortgage offer, either by the seller before completion or by the buyer shortly after completion with funds retained. Your solicitor will advise you on the specific position your lender takes, but a C2 on the consumer unit is something that will almost certainly need addressing in the context of a house purchase with a mortgage.
Landlord Requirements Under the Housing (Scotland) Act 2006
If you are buying a property to rent out, the position is clearer still. The Housing (Scotland) Act 2006 Repairing Standard requires that all electrical installations in privately rented properties are in a reasonable state of repair and in proper working order. From 1 March 2024, the Repairing Standard was updated to specifically require residual current device protection. A property without adequate RCD protection in the consumer unit does not meet the Repairing Standard, which means as a landlord you would be required to upgrade it before or shortly after taking on a tenancy.
Landlords in Scotland are also required to have an EICR carried out every five years. An EICR that returns Unsatisfactory requires remedial work to be completed and a new satisfactory EICR obtained.
No Notification to Council Required in Scotland
One thing that confuses a lot of people is the notification requirement. In England and Wales, certain electrical work in dwellings falls under Part P of the Building Regulations and must either be self-certified by a registered competent person or notified to the local authority building control department. Scotland operates under a completely different system. Consumer unit replacement in Scotland is carried out under BS 7671 and the Scottish Building Regulations, and there is no requirement to notify the council when replacing a consumer unit in a domestic property. Your electrician certifies the work using an Electrical Installation Certificate, which is the appropriate documentation under BS 7671. No council notification is needed.
BS 7671 Amendment 4 and What It Means for Consumer Units
BS 7671 Amendment 4, which becomes mandatory in October 2026, is an update to the 18th Edition of the IET Wiring Regulations. It introduces several changes relevant to consumer units. Most significantly for domestic work, it makes 30mA RCD protection mandatory on all domestic lighting circuits (not just sockets), and it introduces requirements around bidirectional protective devices for installations with solar panels, battery storage or vehicle-to-grid EV charging. It also refines the surge protection requirements.
What this means in practice is that if you are having a consumer unit replaced from October 2026 onwards, the electrician must install a board that complies with Amendment 4. A full RCBO board with SPD, installed correctly, satisfies these requirements. If you are buying now and the property has an older board, that board is not suddenly illegal just because Amendment 4 comes in. Existing installations are not required to be retrospectively upgraded to every new amendment. But any replacement work carried out from October 2026 must meet the new standard.
When Is It Genuinely Optional but Still Worth Considering?
Not every flagged consumer unit means you are legally required to replace it. Here are the situations where replacement is a recommendation rather than a requirement.
A C3 on the EICR
A C3 means an improvement is recommended but the installation is not dangerous. An EICR with only C3 observations returns Satisfactory. Your mortgage lender will not force you to act on it. Scottish law does not require you to act on it for a property you are buying for your own use. You do not have to do anything. That said, a C3 on a consumer unit usually means there is a specific gap in the installation, often the absence of SPDs or the use of older device types. It is worth understanding what the C3 actually relates to and making a decision based on that.
An Older MCB Board That Passes the EICR
Sometimes an older MCB-only board will pass an EICR if the circuits that require RCD protection happen to be fed from separate socket circuits that do have some form of protection, or if the installation is a specific type where the rules are different. This is unusual but it happens. Legally, if the EICR returns Satisfactory, you are fine. Practically, you are still living with a board that has less protection than a modern installation, and it is worth at least getting a quote and thinking about whether you want to upgrade.
Planning Future Work on the Property
If you know you are going to add an extension, put in solar panels, or install an EV charger, the consumer unit is very likely to need upgrading anyway to support those additions. It makes much more sense to do it once as part of a planned programme of work rather than replacing it twice. If any of these projects are on your radar, factor the consumer unit into the conversation when you are getting quotes.
What Does a Consumer Unit Replacement Actually Cost in Aberdeen and Aberdeenshire?
We will be straight with you here. Prices vary across the UK, and Scotland is not a single market. Aberdeen and Aberdeenshire have their own pricing reality, shaped by local labour costs, the oil and gas industry’s effect on wages, and the general cost of operating in the north-east. We are not even looking at Scottish average prices here, because Aberdeen and Aberdeenshire tend to run higher than the Scottish average.
At Faithful Spark Electricians, a full consumer unit replacement with a full RCBO board and SPD starts from £550 plus VAT. That price includes the supply of all the materials, the installation, the testing, and the issue of the Electrical Installation Certificate. It is a complete job, done to BS 7671, by a NICEIC Approved Contractor.
What is included:
- A new metal consumer unit (metal enclosure is a BS 7671 requirement for domestic properties)
- Full RCBO protection on every circuit
- Surge protection device (SPD)
- Testing of the installation after the replacement
- Electrical Installation Certificate documenting the work
What is not included in a standard consumer unit replacement:
- Any remedial work to the existing wiring if faults are found during testing
- A full EICR if one is required separately (though we can carry one out at the same visit if needed)
If you are getting quotes from other electricians, make sure you are comparing like for like. A cheap quote that uses a split-load board instead of a full RCBO board, or that leaves out the SPD, is not the same job.
Can You Negotiate the Cost With the Seller?
Yes, and this is actually a very common approach in Scottish conveyancing. If the EICR or survey has flagged the consumer unit and you have a written quote for the work, you have a concrete figure to take back to the negotiating table. You can use it in one of two ways: ask the seller to reduce the agreed price by the cost of the work, or ask for a retention to be held at completion that covers the cost of having the work done after you take ownership.
The key thing is to get a written quote from a registered contractor before you start those conversations. A written quote from a NICEIC Approved Contractor is a credible document that your solicitor can use in negotiations. A vague estimate or a comment from a surveyor is not. Get in touch with us and we can provide a written quote based on the information available, which gives you something solid to work with before completion.
How Long Does It Take and When Can It Happen?
A consumer unit replacement is typically a one day job. We arrive in the morning, isolate the supply, remove the old board, install the new one, reconnect all the circuits, test everything, and issue the certificate before we leave. You are without power for a portion of the day, usually three to five hours for a standard domestic property, though we always discuss this with the customer beforehand.
In the context of buying a house, there are two options. Some buyers prefer to have the work done before completion, which requires access to be arranged with the seller. Others prefer to complete the purchase and have the work done immediately after. Either approach is workable. If it has been agreed as a retention, the work would typically happen shortly after completion once the funds are released.
One thing that is worth knowing: a consumer unit replacement in Scotland does not require a building warrant. You do not need to apply to the council for permission to have the work carried out. Your electrician will issue the Electrical Installation Certificate, which is the correct documentation under BS 7671, and that is the paperwork you keep for your records and for future buyers or tenants.
Frequently Asked Questions
Do I need council notification for a consumer unit replacement in Scotland?
No. In England and Wales, certain electrical work falls under Part P of the Building Regulations and requires notification to the local building control authority. Scotland does not operate under Part P. Consumer unit replacement in Scotland falls under BS 7671 and the Scottish Building Regulations, and there is no requirement to notify your local council. The correct documentation is an Electrical Installation Certificate issued by the qualified electrician who carried out the work.
Can I replace the consumer unit myself?
No. Consumer unit replacement is notifiable work under Scottish Building Regulations and must be carried out by a qualified electrician who can certify the completed installation. Beyond the legal requirement, consumer unit work involves working on the live supply side of the installation, which carries serious risk of electrocution or fire if done incorrectly. It is not a DIY job under any circumstances.
Will my mortgage lender require a consumer unit replacement?
It depends on what the EICR says. If the EICR returns Satisfactory, even with C3 observations, the vast majority of mortgage lenders will not require any work. If the EICR returns Unsatisfactory due to C1 or C2 observations relating to the consumer unit, then yes, most mortgage lenders will require those observations to be remedied before or shortly after completion as a condition of the mortgage. Check the specific requirements with your solicitor and mortgage broker, as different lenders take slightly different positions.
What is a C2 on a consumer unit and is it serious?
A C2 means the observation is “potentially dangerous.” It means there is a defect that could lead to danger if conditions deteriorate or if the installation is used normally over time. Common C2 observations on consumer units include the absence of adequate RCD protection on circuits that require it, a consumer unit with a plastic rather than metal enclosure (which is a fire risk), or signs of overheating or damage. A C2 is serious enough to make the EICR Unsatisfactory, and it is serious enough that most mortgage lenders will require it to be resolved. It is not immediate danger in the way a C1 is, but it should not be left unresolved.
What is BS 7671 Amendment 4 and does it affect me?
BS 7671 is the national standard for electrical installations in the UK, published by the Institution of Engineering and Technology. It is updated periodically through amendments. Amendment 4, which becomes mandatory in October 2026, includes several changes relevant to consumer units: it makes 30mA RCD protection mandatory on domestic lighting circuits, refines surge protection requirements, and introduces rules for bidirectional protective devices (relevant if you have solar panels, battery storage or vehicle-to-grid EV charging). If you are having a consumer unit replaced after October 2026, the work must comply with Amendment 4. Existing installations are not required to be retroactively upgraded to meet every new amendment, but any replacement work from that date must meet the new standard.
Can I get the seller to pay for it?
Yes, this is common practice in Scottish property transactions. If the EICR or survey has flagged the consumer unit, you can ask the seller to either reduce the purchase price to reflect the cost of the work, or agree to a retention being held at completion until the work is completed. The best starting point is a written quote from a NICEIC Approved Contractor, which gives you a solid figure to negotiate with. Your solicitor can advise on how to structure the negotiation based on the specific circumstances of your purchase.
About the Author
This guide was written by Steven Watt of Faithful Spark Electricians, based in Peterhead and serving Aberdeen and Aberdeenshire. Steven holds City and Guilds qualifications including 2357, 2365 and 2391-52 (the inspection and testing qualification). Faithful Spark Electricians is a NICEIC Approved Contractor and OZEV Authorised Installer for EV charging equipment.
